At the heart of the Precision Engineering Consortium’s facility are four temperature-controlled, vibration-isolated laboratories in which faculty, students, and staff develop new ideas for metrology, precision fabrication, and control. The laboratories (temperature controlled at 20 degree C to ±0.03 degree C) are equipped with the most advanced measurement, computational, and fabrication resources worth over $2 million.

Services

The Precision Engineering Consortium’s computer scientists, physicists, and engineers form a unique multidisciplinary team. These researchers have an impressive array of resources at their disposal in our facility as well as access to the resources of the entire university via collaboration with other laboratories and other faculty. The PEC research team can provide engineering consultation, prototype fabrication and state-of-the-art metrology services to industrial and research communities. This includes services to other on-campus research groups. For more information, please contact Jacob Marx (jcmarx@ncsu.edu) at (919) 515-3977.

Measurement Facilities

The PEC is well equipped for various types of measurement.

Surface Finish and Form Measurement

	Griffin 4 Axis XYZC Stage With CA Probe Noncontact 3D Profilometry Vertical: 0.5 µm resolution/ 100 mm Range Horizontal: 0.5 µm resolution/ 150 mm Range Horizontal Repeatability: 0.1 µm
	Zygo NewView 5000 Interferometric Microscope Noncontact 3D Profilometry Vertical: 0.1 nm resolution/ 5 mm Range Horizontal: 0.5 µm resolution/ 50 mm Range
	Form Talysurf Stylus Profilometer Contact 2D Profilometry 10mg stylus load Vertical: 5 nm resolution/ 6 mm Range Horizontal: 0.5 µm resolution/ 120 mm Range
	Zygo GPI Laser Interferometer Noncontact 3D Surface Measurement Vertical: 2 nm resolution/ 0.1 mm Range Horizontal: 10 µm resolution/ 150 mm Range

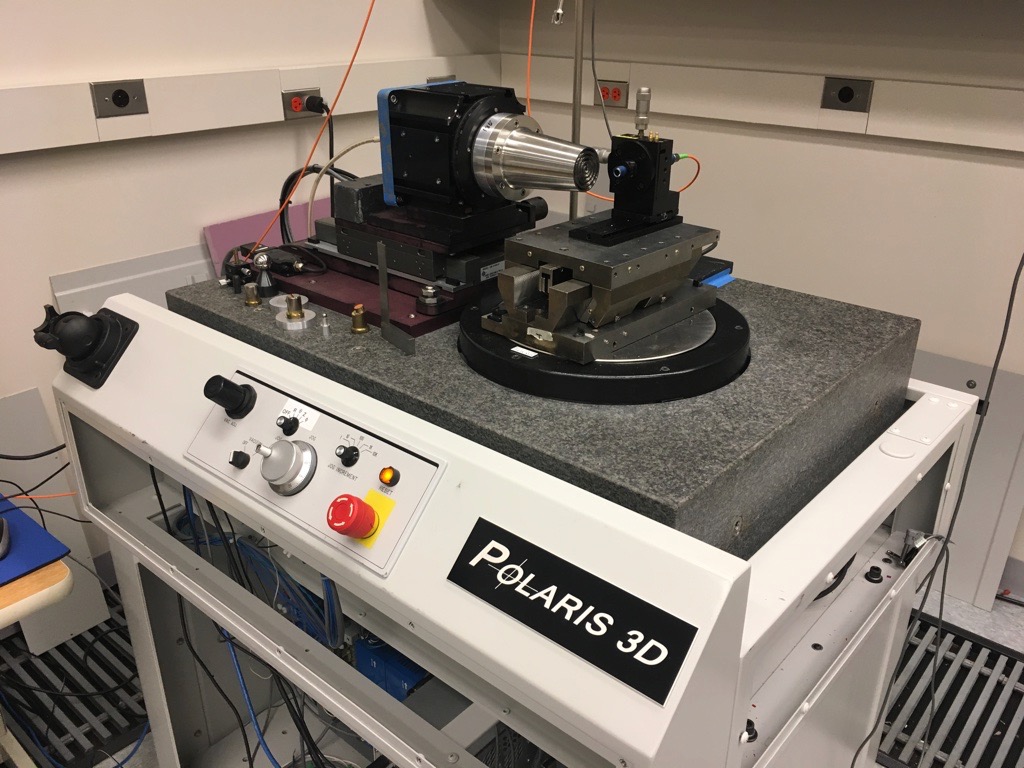

	Polaris Noncontact Spherical Measurement Confocal, chromatic probe, ±20° angle of incidence 100 mm radius hemispheric working volume 60 nm resolution

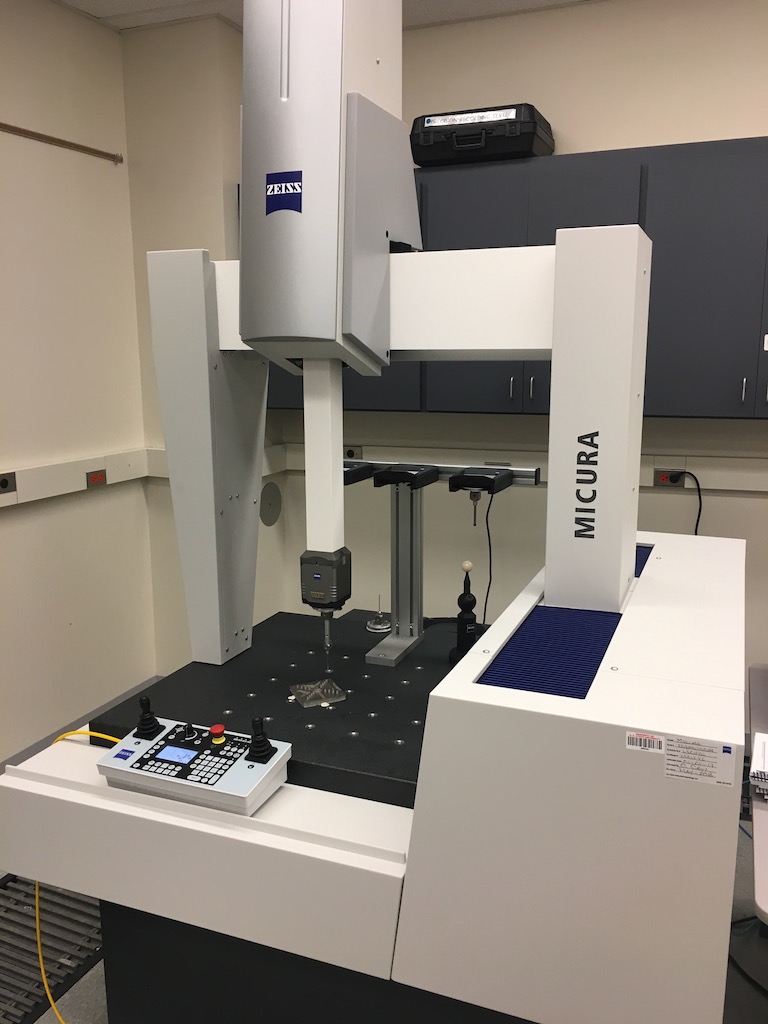

	Zeiss Micura Coordinate Measuring Machine 3D Contact Measurement 500mm x 500mm x 500mm working volume Capable of scanning surfaces ISO 10360 Maximum Permissible Error: E0 (um): 0.7 + L/400 THP (um): 0.9

Fabrication Facilities

The PEC has purchased or built laboratory-scale and production-scale diamond turning machines (Pneumo ASG2500 and Nano Form 600), precision grinders, and a computer-controlled focused ion beam machining system. Custom controllers have been developed and integrated in these machines tools to improve and expand their performance.

	Rank Pneumo ASG2500 Ultraprecision Lathe Maximum Workpiece Diameter: 300 mm Travel: 250 mm (X-axis), 150 mm (Z-axis) Feedback: Laser Interferometer with 2.5 nm resolution
	Rank Pneumo Nanoform 600 4-axis ultraprecision machining center Maximum Workpiece Diameter: 600 mm Travel: 300 mm (X-axis), 300 mm (Z-axis), 100 mm (Y-axis) Feedback: Laser Interferometer with 1.25 nm resolution (X&Y) High-resolution encoder with 1 nm resolution (Y) High-resolution encoder with 1 arcsec resolution (C)
	Federal Mogul Westwind Grinding Spindle Air Turbine Drive Air Bearing Spindle 0-60 kRPM
	Fast Tool Servo (for machining rotationally asymmetric surfaces) Travel: 35 µm Bandwidth: ~1kHz Feedback: ADE Capacitance Gage with 12.5 nm resolution
	Variform Fast Tool Servo (for machining rotationally asymmetric surfaces) Travel: 400 µm Bandwidth: ~300 Hz Feedback: LVDT 10 nm resolution
	Ultramill (A piezoelectric milling device) Travel: 20×8 µm elliptical path Max. operating frequency: 4 KHz

Displacement Measurement

• ADE 3401 Microsense 2-Channel Capacitance
• Rank Pneumo Electronic Indicator Gages
• ADE 3910 2-Channel Capacitance Gage
• Federal Products Electronic Indicators
• LLNL Differential Mode Capacitance Gage
• Lion Precision Targa Capacitance Gage
• Hewlett-Packard Laser Interferometers

LVDT’s and Eddy Current Probes Vibration & Force Measurement

• B&K Accelerometers and Instrumented Hammer
• Kistler 3-Axis Load Cells
• PCB Accelerometers and Instrumented Hammer
• Kistler Accelerometers

Computational Facilities

The PEC’s computing facilities include DSP systems for data acquisition and control and workstation PCs connected to the high-speed campus network. Engineering software site licenses for applications such as ANSYS, AvantEdge, Maple, Matlab, Mathematica, and SolidWorks/Simulation provide access to the latest computing tools for precision engineering.

Other NCSU Facilities

PEC students also have access to other university facilities, such as the Analytical Instrumentation Facility that includes high-resolution scanning electron microscopes.
